What Is Formation Temperature?

Formation temperature is the temperature of geological formations at varying depths below the Earth’s surface. This temperature rises with depth due to the geothermal gradient, which is the natural rate of temperature increase within the Earth.

Benefits of understanding formation temperature:

• Optimizing drilling fluids and equipment.
• Preventing thermal damage to tools.
• Improving the accuracy of subsurface data analysis.

Factors Affecting Formation Temperature

Several factors influence formation temperatures. Here are the key elements:

• Geothermal Gradient: This is the rate at which temperature increases with depth. It’s measured in degrees Celsius per kilometer (°C/km) or degrees Fahrenheit per 1000 feet (°F/1000ft). The average geothermal gradient is around 25-30 °C/km, but it can vary significantly.
• Surface Temperature: The average annual surface temperature at a location serves as the baseline for temperature calculations.
• Depth: The deeper the formation, the higher the temperature will generally be due to the Earth’s geothermal gradient.
• Thermal Conductivity of Rocks: Different rock types transmit heat at different rates. Sedimentary rocks are generally less conductive than igneous or metamorphic rocks.
• Heat Flow: The heat emanating from the Earth's interior varies regionally and can affect formation temperatures.
• Local Geological Factors: Features like faults, intrusions (magma bodies), and fluid flow patterns can also significantly impact subsurface temperatures.

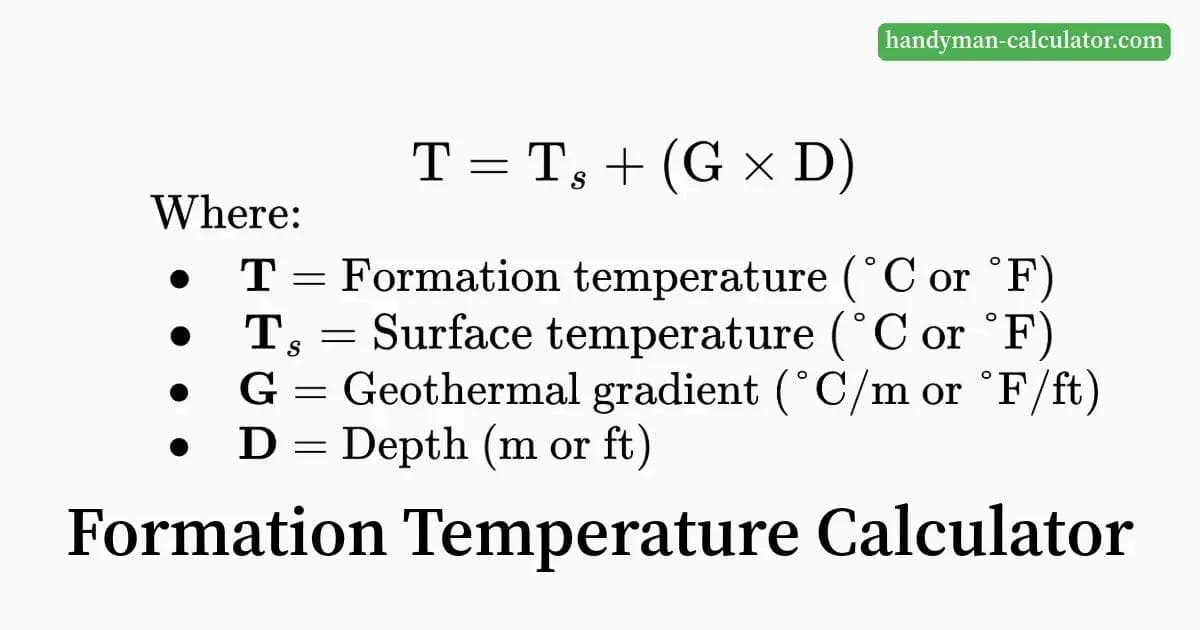

Formula for Formation Temperature

The formation temperature at a specific depth is calculated using the following formula:

T = Tₛ + (G × D)

Where:

• T = Formation temperature (°C or °F)
• Tₛ = Surface temperature (°C or °F)
• G = Geothermal gradient (°C/m or °F/ft)
• D = Depth (m or ft)

Explanation of Terms:

1. Surface Temperature (Tₛ): The ambient temperature at the Earth's surface.
2. Geothermal Gradient (G): The rate at which temperature increases with depth. Typical values are 25°C/km (or 1.4°F/100 ft).
3. Depth (D): The vertical distance from the surface to the target formation.

Example Calculation

Let’s calculate the formation temperature for a well:

Metric Units:

• Surface temperature = 15°C
• Geothermal gradient = 0.025°C/m
• Depth = 2000 m

Calculation:
T = Tₛ + (G × D)
T = 15 + (0.025 × 2000)
T = 15 + 50 = 65°C

Imperial Units:

• Surface temperature = 60°F
• Geothermal gradient = 0.014°F/ft
• Depth = 5000 ft

Calculation:
T = Tₛ + (G × D)
T = 60 + (0.014 × 5000)
T = 60 + 70 = 130°F

Conclusion

The Formation Temperature Calculator provides accurate results for subsurface temperature estimation using the geothermal gradient formula. It supports both metric and imperial units, making it a practical tool for professionals in drilling and subsurface analysis.
